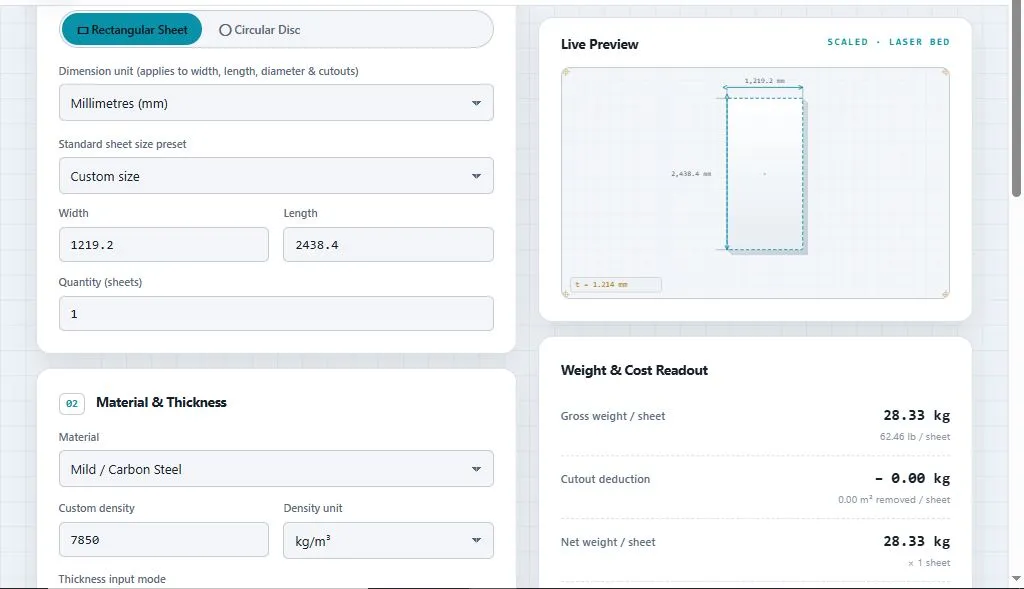

This sheet metal weight calculator gives the weight and cost of rectangular sheets and circular discs in steel, galvanized steel, stainless steel and aluminum. Enter the size, choose a gauge or a custom thickness, add any laser-cut holes or slots, and it shows gross weight, cutout deduction, waste margin and a full cost total. No sign-up, and everything runs in your browser.
Table of Contents
How Much Does a 4 × 8 ft Steel Sheet Weigh?
A standard 4 × 8 ft sheet (1219.2 × 2438.4 mm) covers about 2.97 m². For mild steel at 7850 kg/m³, the weight depends only on the gauge:
| Gauge | Thickness | Weight per Sheet |
|---|---|---|
| 7 ga | 4.55 mm | 106.18 kg |
| 10 ga | 3.42 mm | 79.81 kg |
| 12 ga | 2.66 mm | 62.08 kg |
| 14 ga | 1.90 mm | 44.34 kg |
| 16 ga | 1.52 mm | 35.47 kg (78.2 lb) |
| 18 ga | 1.214 mm | 28.33 kg (62.5 lb) |
| 20 ga | 0.912 mm | 21.28 kg |
| 22 ga | 0.759 mm | 17.71 kg |
| 24 ga | 0.607 mm | 14.17 kg |
Gauge numbers run backwards: a higher number means a thinner sheet. The values above use the Manufacturers' Standard Gauge for steel.
Same Sheet, Different Metal
The same 4 × 8 ft sheet at 2 mm thickness weighs very differently by material:
| Material | Density | Weight per Sheet |
|---|---|---|
| Mild steel | 7.85 g/cm³ | 46.67 kg |
| Stainless steel (about 8.0) | 8.00 g/cm³ | 47.57 kg |
| Aluminum | 2.70 g/cm³ | 16.05 kg |
Aluminum is about a third of the weight of steel for the same size. When you compare metals, enter the thickness directly instead of using a gauge number, because gauge charts differ by metal. For example, 16 gauge steel is about 1.5 mm, while 16 gauge aluminum is about 1.3 mm. For the background, see this historical NIST circular on sheet-metal gages.
Worked Example: A Sheet With Holes
Take an 18 ga mild steel sheet (1219.2 × 2438.4 × 1.214 mm) with 20 circular holes of 50 mm diameter, a 5% waste margin and a price of $1.20 per kg:
- Gross weight = 28.33 kg
- Each hole removes about 18.7 g, so 20 holes remove 0.37 kg
- Net weight = 28.33 − 0.37 = 27.96 kg
- Waste margin is added after the deduction: 27.96 × 1.05 = 29.36 kg billable
- Material cost = 29.36 × $1.20 = about $35.23
Cutouts lower the weight of the finished part. If your supplier charges for the full sheet, either leave the cutouts out or cover the removed material through the waste margin.
The Formula
Weight (kg) = Length (mm) × Width (mm) × Thickness (mm) × Density (g/cm³) ÷ 1,000,000
For a 1000 × 500 × 2 mm steel sheet: 1000 × 500 × 2 × 7.85 ÷ 1,000,000 = 7.85 kg. For a circular disc, the area is π × (diameter ÷ 2)² and is then multiplied by thickness and density. A 300 mm disc of 3 mm mild steel, for example, weighs about 1.66 kg.
FAQs
How do you calculate the weight of a sheet metal?
Multiply the sheet's length, width, and thickness together to get its volume, then multiply that volume by the material's density. For a rectangular steel sheet 1000mm × 500mm × 2mm, the weight is 1000 × 500 × 2 × 7.85 ÷ 1,000,000 = 7.85 kg. This is exactly the method this sheet metal weight calculator uses internally.
Does gauge number mean the same thickness for every metal?
No. Gauge-to-thickness conversion differs by material and by gauge standard. A 16-gauge steel sheet is not the same thickness as a 16-gauge aluminum sheet, because steel and aluminum use different gauge charts. Always confirm which gauge standard applies to your material before ordering.
How much does a standard 4x8 ft steel sheet weigh?
Using this sheet metal weight calculator, A 4 ft × 8 ft (1219mm × 2438mm) mild steel sheet at 16-gauge (1.52mm thick) weighs approximately 35.2 kg (77.6 lb). Thicker gauges and denser materials like stainless steel will weigh proportionally more.
What density should I use for stainless steel vs. aluminum?
Use 8.00 g/cm³ for 304-grade stainless steel and 2.70 g/cm³ for aluminum. Stainless steel is roughly three times denser than aluminum, so an identically sized sheet in stainless will weigh about three times as much.
How is scrap margin factored into the cost calculation?
Scrap margin adds a percentage buffer on top of the calculated material weight to account for cutting waste, offcuts, and process loss. For example, a 5% scrap margin on a 10kg sheet adds 0.5kg to the billed weight before the final cost is calculated.
What's the difference between sheet metal and plate metal?
Sheet metal is generally thinner and is commonly used for fabrication, enclosures, panels, ductwork, and other formed parts. Plate metal is thicker and is typically used for structural, industrial, and heavy-duty applications. The exact thickness range can vary by industry and standard, so always confirm the material specification before calculating weight.
How accurate is an online sheet metal weight calculator?
A sheet metal weight calculator can provide accurate results when the dimensions, thickness, material density, and quantity are entered correctly. The calculated result is an estimate based on the selected material density and dimensions. Actual weight may vary slightly because of manufacturing tolerances, coatings, surface finishes, and material composition.
Do I need to account for kerf or laser cutting waste separately?
Yes. If a sheet is being laser cut, plasma cut, or otherwise processed, kerf and cutting waste can affect the amount of material required. The calculator's weight result represents the material based on the dimensions entered. For purchasing and production estimates, account separately for kerf, nesting efficiency, scrap, and cutting waste when necessary.
