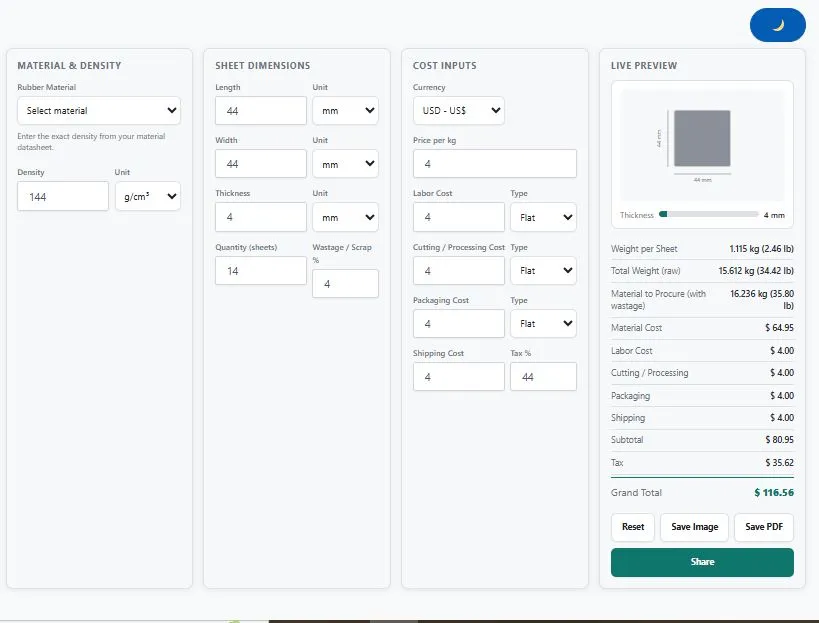

This rubber sheet weight calculator gives you the weight of a rubber sheet from its length, width, thickness and material density, then turns that weight into a full cost estimate. Pick a compound such as EPDM, neoprene, nitrile, silicone or Viton, enter the sheet size in any unit, set the number of sheets and a wastage percentage, and the tool shows the weight per sheet, the total order weight and the amount of material you actually need to buy. Add your price per kg, labor, cutting, packaging, shipping and tax, and you get a grand total in your own currency. It is built for quick quoting and ordering, and it works best when you enter the exact density from your supplier's datasheet.
Related Tools
Table of Contents
How the Calculation Works
Everything is based on one formula: Weight = Length × Width × Thickness × Density. The tool converts each dimension to meters and the density to kg/m³ internally, so you can mix units freely, for example length in feet and thickness in millimeters. The weight per sheet is then multiplied by your quantity, and increased by your wastage % to show the material to procure, which is always higher than the finished-part weight because cutting leaves offcuts.
Reference Density Table
These are typical ranges only. Fillers and compound grade shift the real value, so always use the density printed on your supplier's datasheet.
| Material | Density (g/cm³) |
|---|---|
| Natural Rubber (NR) | 0.92 – 0.99 |
| SBR | 0.94 – 1.20 |
| EPDM | 1.10 – 1.60 |
| Neoprene (CR) | 1.15 – 1.35 |
| Nitrile (NBR) | 1.00 – 1.30 |
| Silicone | 1.10 – 1.60 |
| Viton / FKM | 1.80 – 2.00 |
| Butyl (IIR) | 0.90 – 1.20 |
| Polyurethane (PU) | 1.05 – 1.25 |
Worked Example: Weight and Cost of an EPDM Sheet
Take an EPDM sheet of 1 m × 1 m × 5 mm with a density of 1.35 g/cm³ (1,350 kg/m³).
- Volume = 1 × 1 × 0.005 = 0.005 m³
- Weight = 0.005 × 1,350 = 6.75 kg per sheet
Now order 10 sheets with 5% wastage: 6.75 × 10 × 1.05 = 70.875 kg to procure. At a price of $3.50 per kg, the material alone costs about $248.06, before labor, cutting, packaging, shipping and tax.
Same size, different compound. Density alone changes the weight a lot. For a 1 m × 1 m × 5 mm sheet:
| Material (example density) | Weight per sheet |
|---|---|
| Natural rubber (0.95 g/cm³) | 4.75 kg |
| EPDM (1.35 g/cm³) | 6.75 kg |
| Viton / FKM (1.90 g/cm³) | 9.50 kg |
The Viton sheet weighs twice as much as the natural rubber one, which matters when the supplier sells by weight.
Choosing a Rubber Compound
The right compound affects both the weight and how long the sheet lasts in your application.
- Natural rubber (NR): very elastic with good tear resistance, but weak against ozone, sunlight and oils. Best for indoor, flexible use.
- SBR: a low-cost general-purpose option, common in matting, flooring and non-critical gaskets.
- EPDM: the usual pick for outdoor use because it resists UV, ozone and weather. It is not suited to petroleum oils or fuels.
- Neoprene (CR): balances weather resistance with moderate oil resistance, so it works as a general industrial gasket material.
- Nitrile (NBR): chosen when the sheet touches oil, fuel or hydraulic fluid.
- Silicone: works across a very wide temperature range, but has lower tear strength.
- Viton / FKM: high-temperature and chemical resistance, typically the densest and costliest on this list.
- Butyl (IIR): very low gas permeability, used for inner tubes and vibration damping.
- Polyurethane (PU): high abrasion and tear resistance for parts that take physical wear.
For formal grading, the ASTM D2000 classification standard groups vulcanized rubber by heat-aging type and oil-swelling class, and many manufacturers specify their sheets against it.
Common Mistakes That Change Your Result
Ignoring thickness tolerance. Real sheets vary slightly from the nominal thickness, so the delivered weight can differ a little from the calculated one.
Using the range instead of the datasheet value. EPDM can be anywhere from 1.10 to 1.60 g/cm³, which is a difference of over 45% in weight.
Mixing up units. Sheets are often listed as meters by meters by millimeters. Check the unit dropdown for each field, especially thickness.
Leaving wastage at zero. Cutting gaskets or custom shapes always leaves scrap, so your order will fall short.
Choosing "Flat" for costs that scale. Use "per sheet" for labor, cutting or packaging that repeats on every piece, and "Flat" only for one-time fees.
What This Calculator Does Not Do
It calculates rectangular sheets from the size you enter. It does not subtract holes or cut-outs, and it does not fetch live rubber prices, so you enter your own price per kg. Treat the result as a solid planning estimate and confirm the final figures with your supplier.
Who Uses This Tool
- Rubber fabricators and gasket cutters who need the material weight before pricing a job.
- Purchasing teams planning bulk sheet orders with wastage included.
- Engineers and designers comparing how one sheet size weighs in different compounds.
- Small workshops and DIY builders who want a quick material cost for mats, seals or one-off projects.
FAQs
How do I calculate the weight of a rubber sheet?
Multiply length, width and thickness to get the volume, then multiply by the material density. For a 1 m × 1 m × 5 mm sheet at 1.35 g/cm³, that gives 6.75 kg.
What is the density of rubber sheet?
It depends on the compound: about 0.92–0.99 g/cm³ for natural rubber, 1.10–1.60 for EPDM and 1.80–2.00 for Viton. Use your supplier's datasheet for the exact value.
How does wastage work in the calculation?
The wastage % increases the total raw weight, so the result shows how much material to buy rather than only the finished-part weight. For example, 5% wastage on 67.5 kg gives 70.875 kg.
Can I mix units, such as meters and millimeters?
Yes. Each dimension has its own unit dropdown (mm, cm, m, in, ft, and mils for thickness), and everything is converted internally.
Which costs does the total include?
Material cost, labor, cutting or processing, packaging, shipping and tax, in any of 25+ built-in currencies or a custom symbol.
Can I save or share the result?
Yes. You can save the summary as an image or PDF, or share it through WhatsApp.
Quick Summary
Choose your rubber compound, enter length, width, thickness, quantity and wastage, and this rubber sheet weight calculator shows the weight per sheet, the total order weight and a full cost breakdown in your currency. Use the exact density from your datasheet for the best accuracy.
Disclaimer
This calculator is a free estimation tool for planning and quoting. Results use standard volume-density math and general reference densities, so please confirm final specifications and prices with your rubber supplier before ordering.
